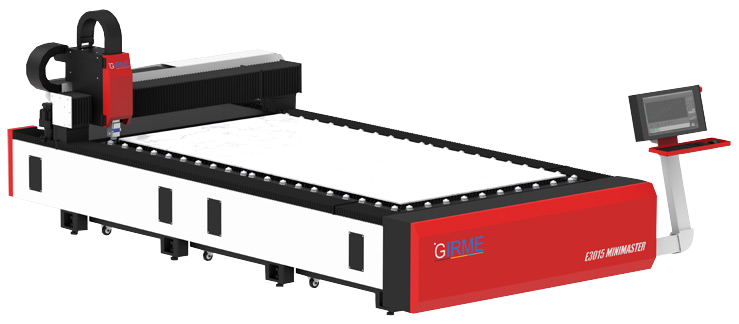

E 3015 MiniMaster Specifications |
||
---|---|---|
Technical Parameters | ||
Parameters | Unit | E 3015 MiniMaster |
Working Area | mm | 3050 x 1550 |
Laser Power | kW | 1 / 1.5 / 2 / 3 |
X / Y axis positioning accuracy | mm | ±0.05 |
X / Y axis repositioning accuracy | mm | ±0.03 |
Max Speed | m / min | 60 / 80 |
Max Acceleration | G | 0.8 / 1.0 |
Size, Minimal Piercing Time, Compensation & Co-edge & Versatile with Intelligent features |



APPLICATIONS
Sheet Metal, Automotive Industry & Artifacts
With the various benefits such as flexibility, adaptability and versatility the laser technology can be used for multitude of applications. The laser cutting process essentially involves cutting effectively through the material under process with zero contact. Fiber laser cutting is a differentiated solution bestowed by various industries especially for the heavy Manufacturing, Automotive Industry etc. however not limited to those. A large number of components even with intricate design can be made through laser cutting.
